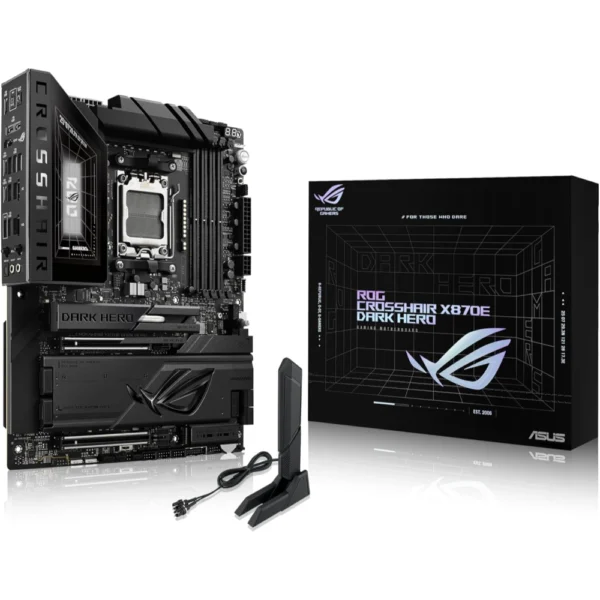

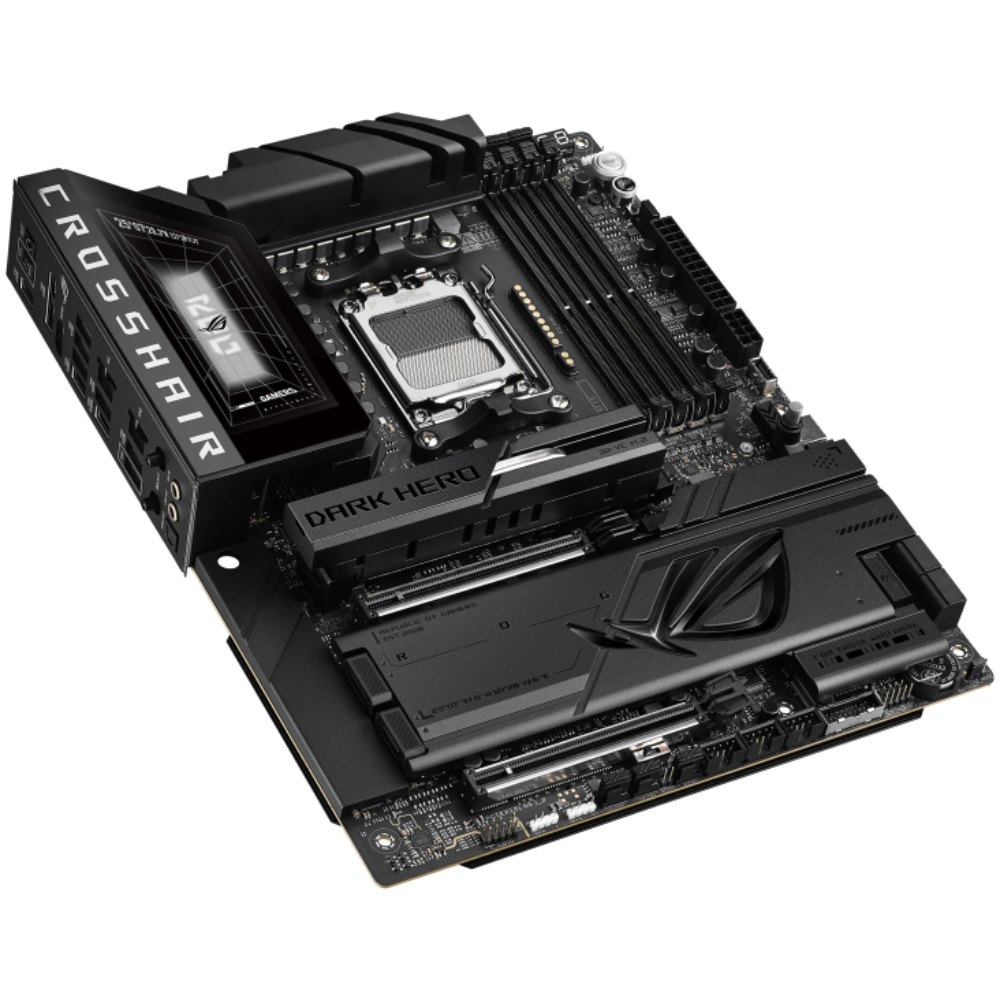

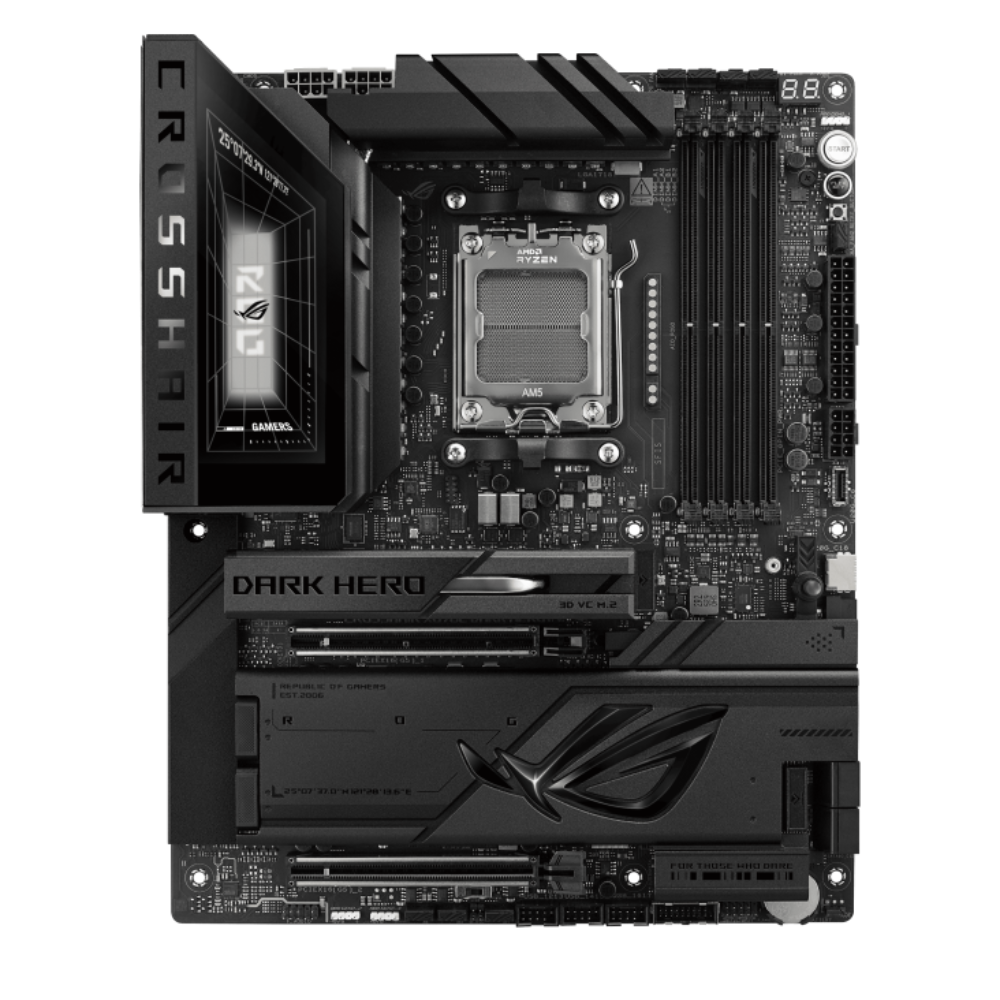

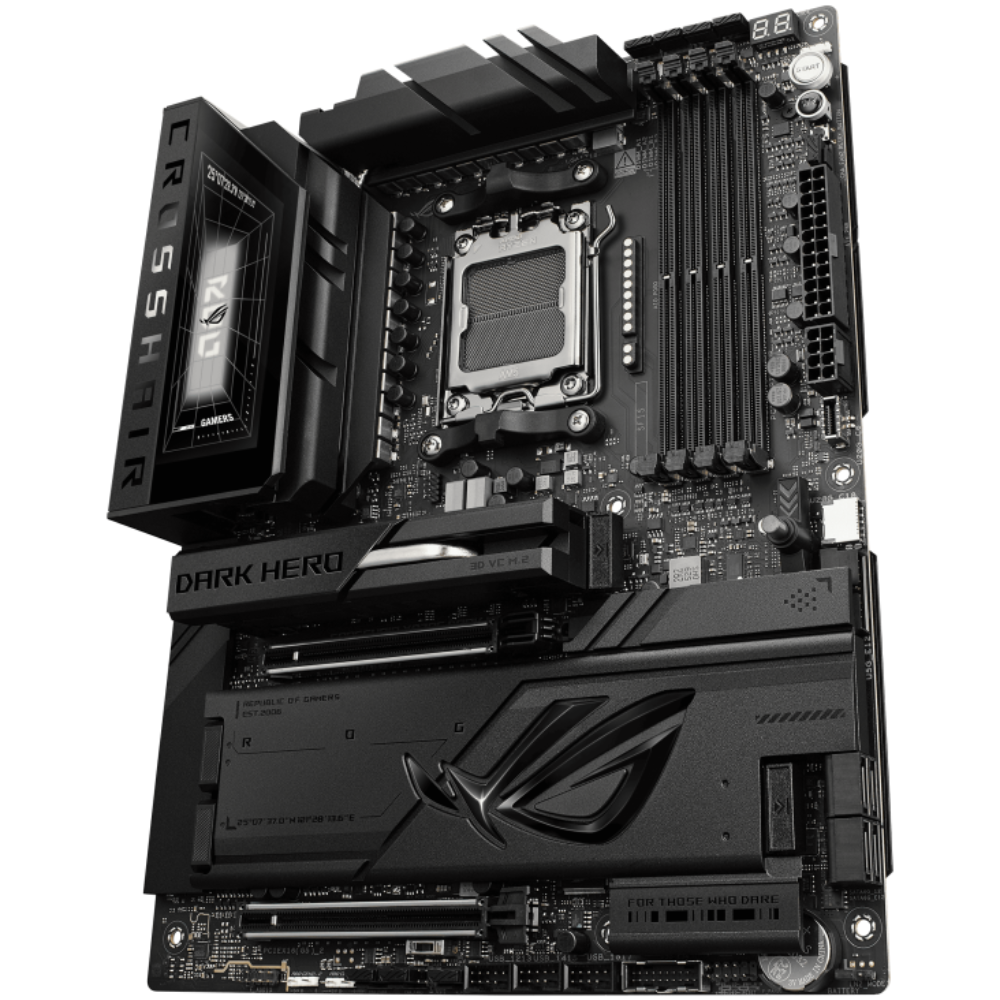

ASUS ROG Crosshair X870E Dark Hero ATX DDR5 Motherboard, PCIe 5.0, 5x M.2 Slots, WiFi 7, Dual Ethernet, USB4, 20+2+2 Power Design, For AMD AM5 Ryzen 9000/8000/7000 Series

Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4 ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.

• Premium ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series desktop processors with AM5 socket support
• AMD X870E chipset with advanced connectivity, high-speed expansion, and enthusiast-grade tuning features

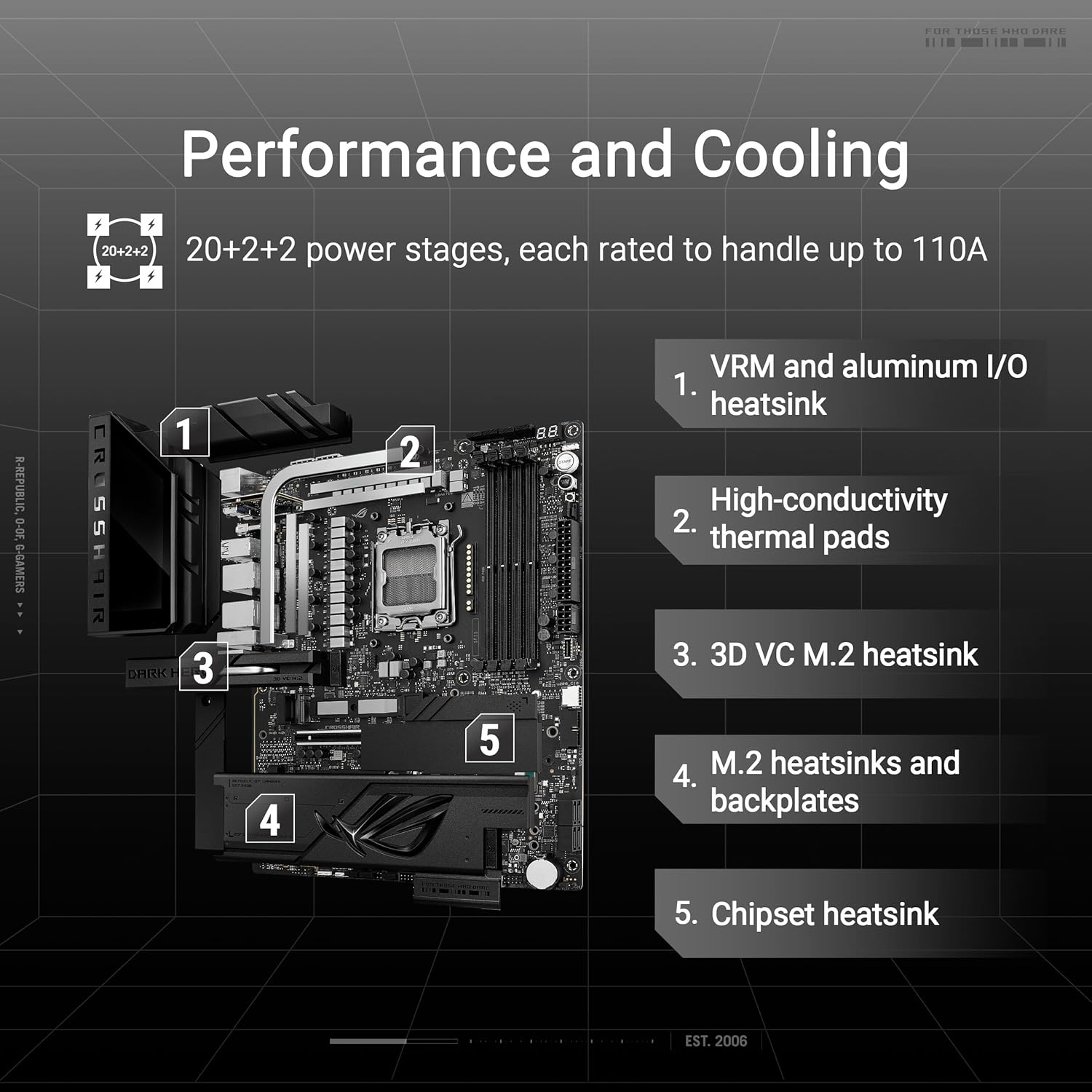

• 20+2+2 power stage design with 110A CPU power stages and dual 8-pin CPU power connectors for stable high-performance operation
• Supports DDR5 memory up to 256GB across 4 DIMM slots with dual-channel architecture
• Memory support up to 8600+ MT/s overclocked speeds with AMD EXPO, ASUS Enhanced Memory Profile, DIMM Fit, and NitroPath DRAM technology
• Dual PCIe 5.0 x16 expansion slots supporting high-bandwidth graphics cards and next-generation devices
• Five onboard M.2 slots:
  • 2x PCIe 5.0 M.2 slots
  • 2x PCIe 4.0 M.2 slots
  • 1x PCIe 4.0 M.2 slot for compact storage devices
• Includes advanced M.2 cooling with 3D vapor chamber heatsink and dedicated thermal solutions
• Supports up to 4 SATA 6Gb/s storage drives
• High-speed networking with:
  • 10Gb Ethernet
  • 5Gb Ethernet
  • WiFi 7 wireless connectivity
  • Bluetooth support

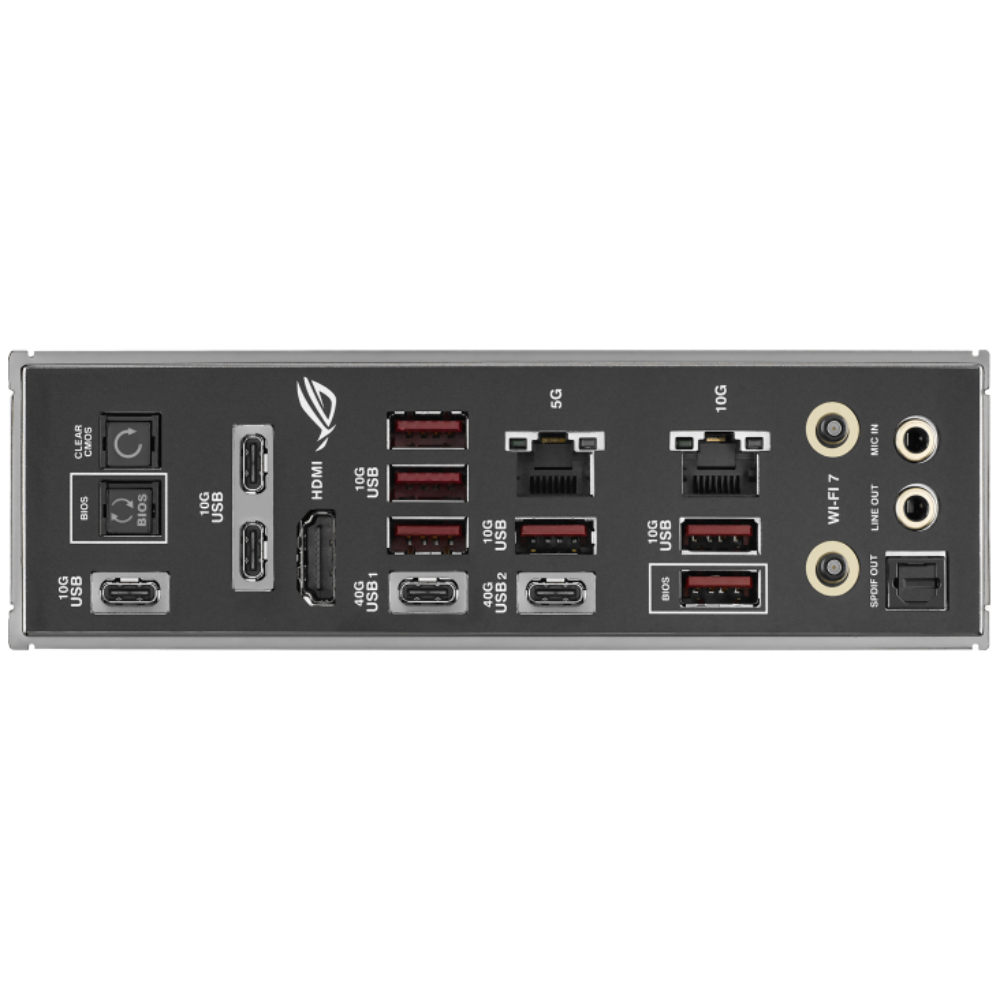

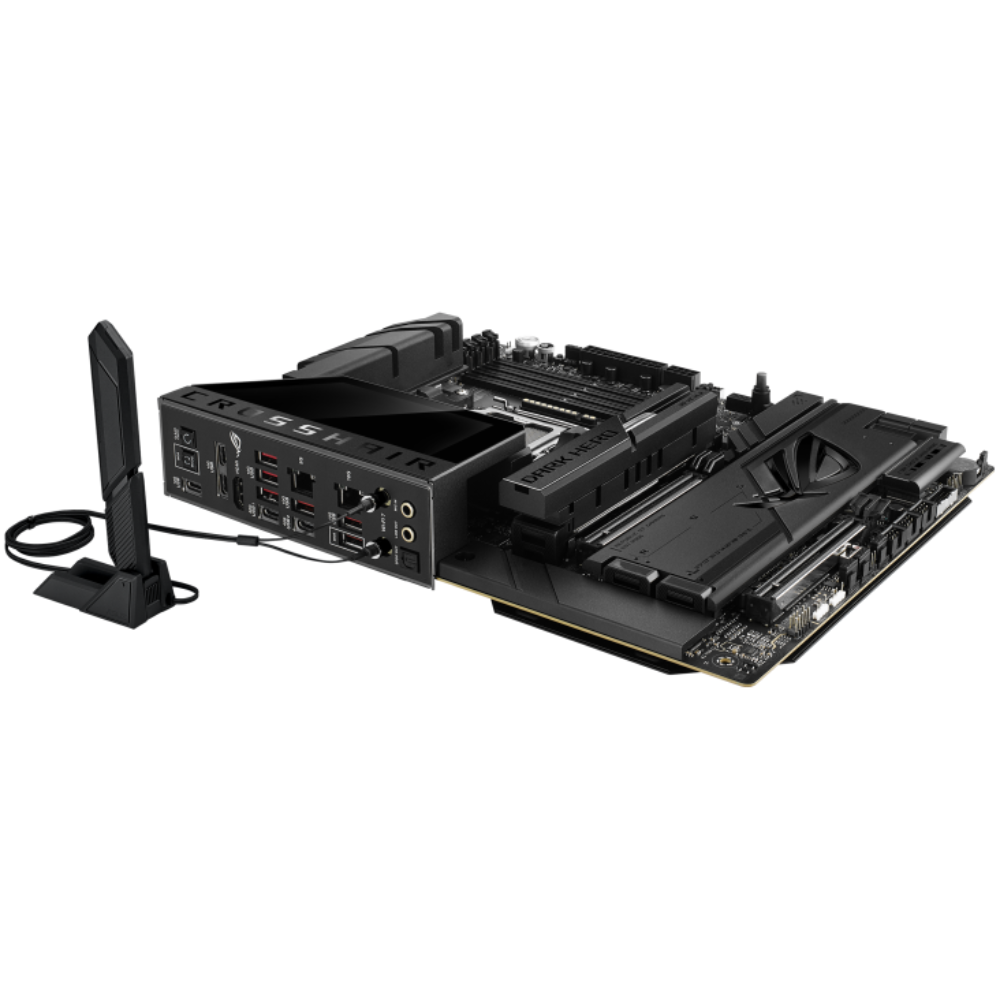

• Rear connectivity includes:
  • 2x USB4 Type-C ports with up to 40Gbps transfer speeds
  • Multiple USB 10Gbps Type-A and Type-C ports
  • HDMI output for supported processors
• Front-panel connectivity supports USB Type-C 20Gbps with high-power charging support
• Premium audio system with high-definition 7.1 channel audio, ESS DAC, optical S/PDIF output, and enhanced audio components
• Advanced cooling support with multiple fan headers, AIO pump header, water pump header, VRM heatsinks, and thermal monitoring
• Built-in overclocking features including Dynamic OC Switcher, Core Flex, Precision Boost Overdrive support, and dedicated tuning controls

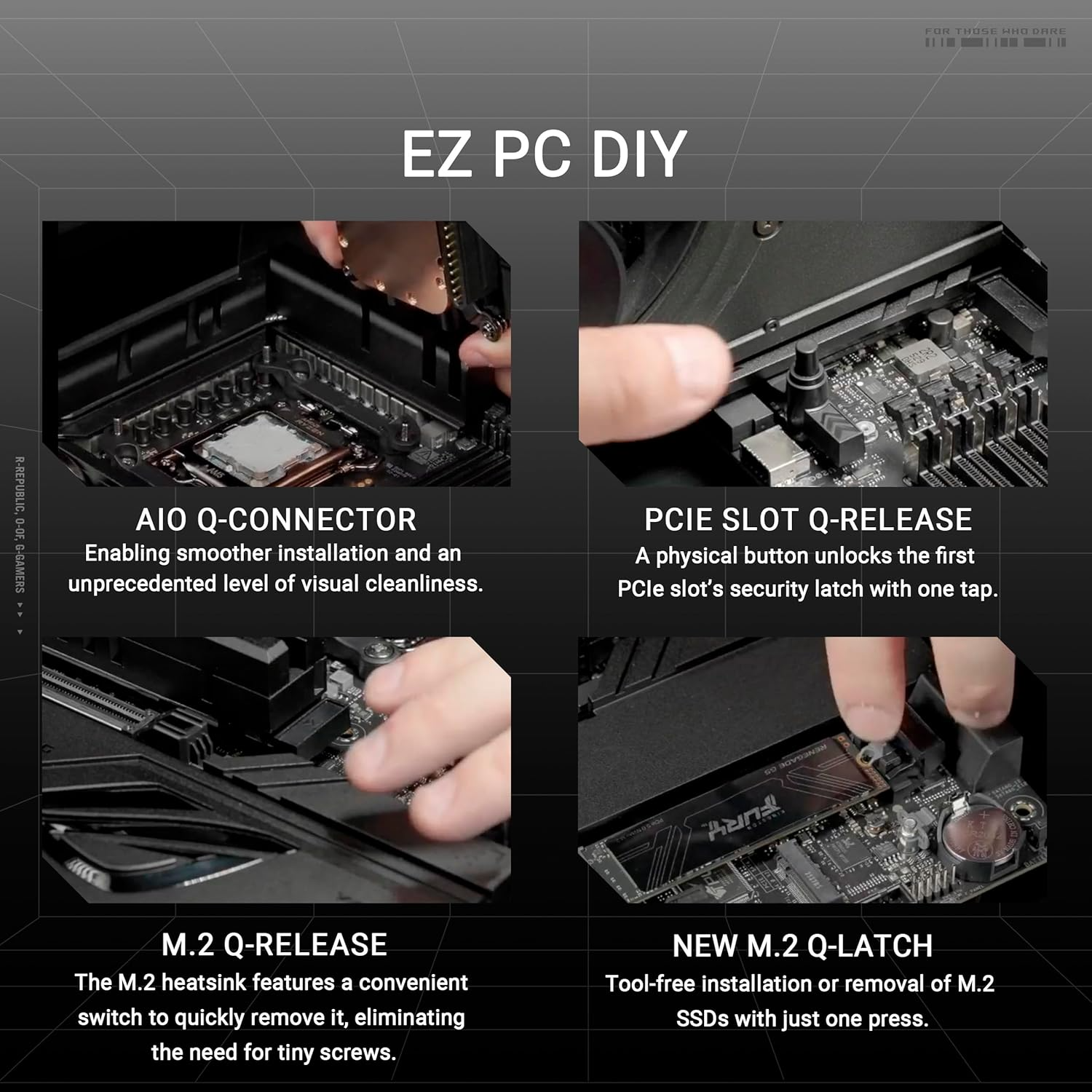

• Easy PC building features including M.2 tool-free installation, PCIe slot release, BIOS FlashBack, Clear CMOS button, Q-Code display, and onboard power controls
• UEFI BIOS with 64MB ROM for advanced configuration and future processor support
• Aura Sync RGB lighting support with addressable RGB headers
• ATX form factor: 12 x 9.6 inches (30.5 x 24.4 cm)
