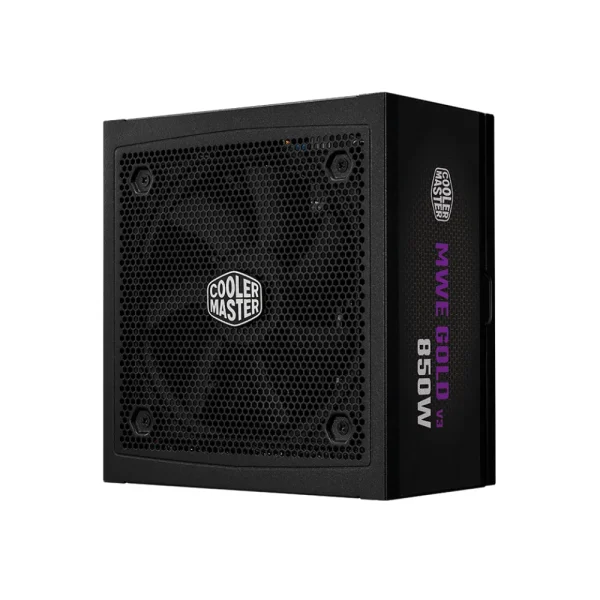

The MWE Gold brings a new standard of durability and efficiency to Cooler Master’s lineup of power supply units combined with ATX 3.1 support.
| Category | 850W / 750W | 650W | 550W |
|---|---|---|---|
| Model | MPE-8506-ACAG-B** / MPE-7506-ACAG-B** | MPE-6502-ACAAG-3B** | MPE-5502-ACAAG-3B** |
| Series | MWE Gold Series | MWE Gold Series | MWE Gold Series |
| Form Factor | ATX | ATX | ATX |
| ATX Version | ATX 12V Ver. 3.1 | ATX 12V Ver. 3.1 | ATX 12V Ver. 3.1 |
| Modular | Non-Modular | Non-Modular | Non-Modular |
| Efficiency Rating | 80 PLUS Gold (≥90% @ typical load) | 80 PLUS Gold (≥90%) | 80 PLUS Gold (≥90%) |
| PFC | Active PFC | Active PFC | Active PFC |
| Input Voltage | 100–240V | 100–240V | 100–240V |
| Input Current | 10–6A | 10–5A | 8–4A |
| Input Frequency | 50–60Hz | 50–60Hz | 50–60Hz |
| Dimensions (L×W×H) | 140 × 150 × 86 mm | 140 × 150 × 86 mm | 140 × 150 × 86 mm |
| Fan Size | 120mm | 120mm | 120mm |
| Fan Bearing | HDB | HDB | HDB |
| Fan Speed | 2400 RPM | 2400 RPM | 1800 RPM |
| Operating Temperature | 0–40 °C | 0–40 °C | 0–40 °C |
| Power Good Signal | 100–150 ms | 100–150 ms | 100–150 ms |
| Hold-Up Time | ≥16 ms @ 80% load | ≥16 ms @ 80% load | ≥16 ms @ 80% load |
| MTBF | >100,000 hrs | >100,000 hrs @ 25 °C | >100,000 hrs @ 25 °C |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP | Same | Same |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS 2.0 / BIS, KC* | Same | Same |
| Connector Type | 850W / 750W | 650W | 550W |
|---|---|---|---|
| ATX 24-Pin | 1 | 1 | 1 |
| EPS CPU 8-Pin / 4+4 | 2 | 2 | 2 |
| PCIe 6+2-Pin | 4 | 4 | 2 |
| SATA | 6 | 6 | 6 |
| Peripheral 4-Pin (Molex) | 3 | 3 | 3 |
| 12V-2×6 (12+4-Pin) | 1 | — | — |
*Certifications depend on region.
