Description
Platinum efficiency, fully modular and virtually silent
CORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105Ā°C capacitors, theyāre a great choice for high performance PCs where reliability is essential.
|
|
|
|
---|---|---|---|
Quiet, efficient operation80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads. |
100% Japanese 105Ā°C capacitorsPremium internal components ensure solid power delivery and long term reliability. |
Zero RPM Fan ModeSince the fan doesnāt turn on until itās needed, youāll enjoy virtually silent operation at low and medium loads. |
Ten year warrantyYour guarantee of reliable operation that will last across several system builds. |
|
|
|
---|---|---|

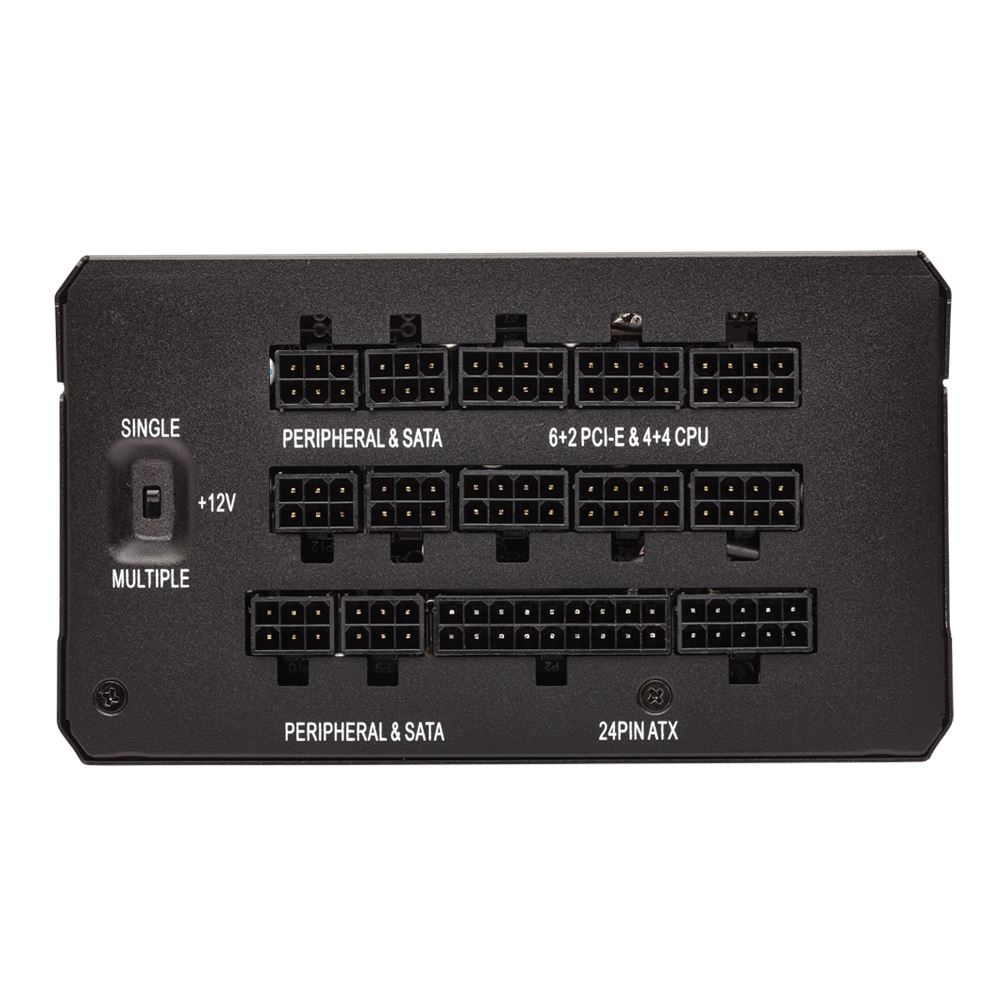

Power In Your HandsToggle single +12V rail or multi +12V rail mode. In the ‘Single’ position, the full output capability of the power supplyās +12V rail is available to any and all connectors, while in the ‘Multiple’ position, each individual connector has Over-Current Protection so no more than 40A of current can be delivered on any given cable. |
Easy InstallationThe fully modular DC cables make builds and upgrades easy, with clean, great-looking results. |
Compatibility:
- 6th generation Intel Core processor Ready (Intel Skylake and Z170 motherboards)
- ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and ATX12V 2.01 systems
Contents and Specifications
- Package Contents:
- HX Series ATX Power Supply
- Power cord
- Mounting screws
- Cable ties
- Corsair case badge
- User manual
- Feature:
- 80 PLUS Platinum efficiency, delivering 90% energy efficiency at real world load conditions
- ZeroRPM mode for fanless operation at low loads and outstanding noise reduction
- 135mm thermally controlled, fluid dynamic bearing fan only spins up as needed
- Fully modular cables for easy installation, less clutter, and helps maximize airflow through your computerās chassis
- Engineered to meet maximum power output at a server-grade 50Ā°C temperature rating
- Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components
- Safety and Agency Approvals: FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), Reach
